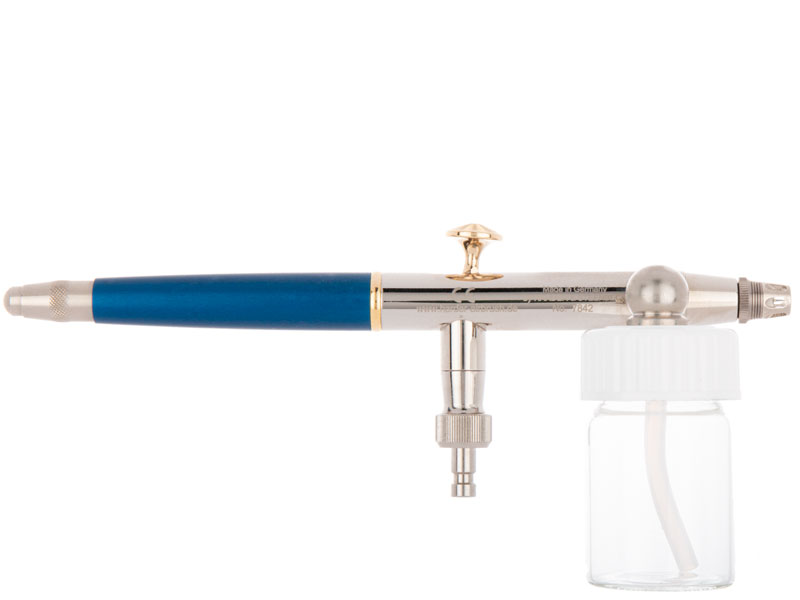

Harder & Steenbeck Grafo T3 Airbrush

The Harder & Steenbeck Grafo T3 is a high end side feed airbrush for fine & microfine work, it feature a continuous double action (see below), nozzle constructed from high alloy silver, stainless needle & paint volume control with memory.

The Grafo features continuous double action, where the air & paint flow are both controlled by the backwards movement of the trigger. The first portion of backwards trigger travel is reserved for air & the remainder of the travel controls paint flow in the same manner as a regular double action airbrush.

As standard the Grafo T3 comes with an 0.4mm needle / nozzle set, 2 x 15ml paint jars & case. The Grafo is also supplied with a quick connect fitting allowing it to be used with quick connect hoses, alternatively this fitting can be removed allowing it to be connected to a standard 1/8" BSP hose.

** Now fitted with the new & improved "V2" needle design.

Optional needle / nozzle sets of 0.15, 0.2 & 0.6mm are available, as well as a conversion kit to allow the use of 5ml bayonet fit colour cups.

We carry the full range of Harder & Steenbeck spares & accessories for the Grafo T3 in stock.

As with all Harder & Steenbeck Airbrushes, build quality is superb & the design allows for a very quick & easy tool free strip down for thorough cleaning.



For Grafo parts or operating instructions (PDF, opens in new window);
