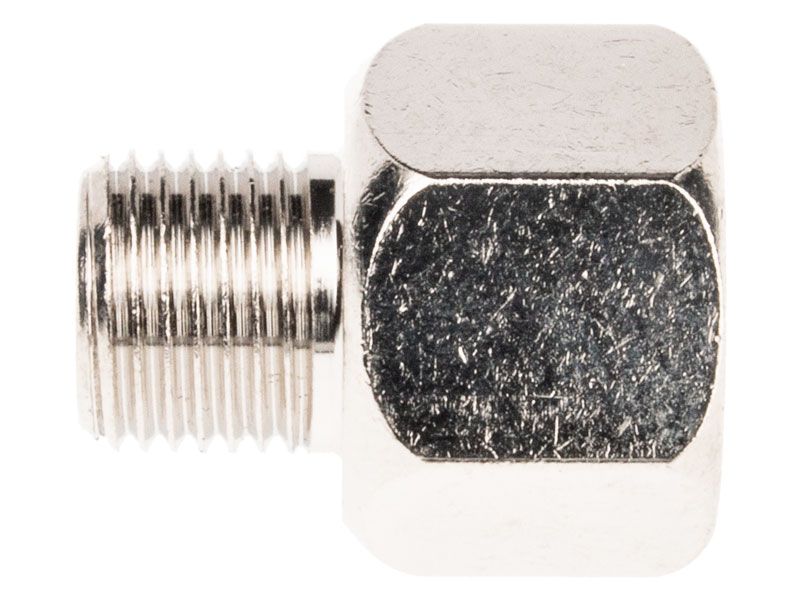

Reducer 1/4' Female to 1/8' Male
Product Reference: 885008
£3.49 ( £2.91 Excluding VAT at 20%)
1/4" BSP-P Female to 1/8" BSP-P Male reducer for connecting 1/4" BSP-P Male to 1/8" BSP-P Female unions.
Typically used to step down 1/4" BSP male compressor outlets to 1/8" BSP air hoses.
The 1/4" female side is internally gasketed & the 1/8" thread end of this connector is profiled to successfully create an airtight seal when used with 1/8" BSP airbrush hoses that have an integrated gasket.
* BSP-P connectors do not seal on their threads & a sealing washer, tape, or liquid is required to create an air tight seal.

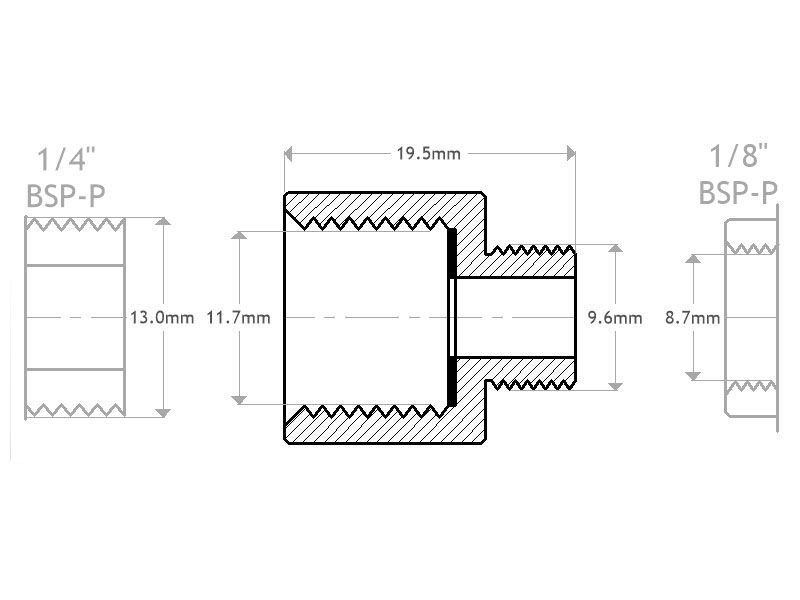

Click on the thumbnail below the product image for a drawing with dimensions..
Typically used to step down 1/4" BSP male compressor outlets to 1/8" BSP air hoses.
The 1/4" female side is internally gasketed & the 1/8" thread end of this connector is profiled to successfully create an airtight seal when used with 1/8" BSP airbrush hoses that have an integrated gasket.
* BSP-P connectors do not seal on their threads & a sealing washer, tape, or liquid is required to create an air tight seal.
Click on the thumbnail below the product image for a drawing with dimensions..
